ADD-Vantage 9000

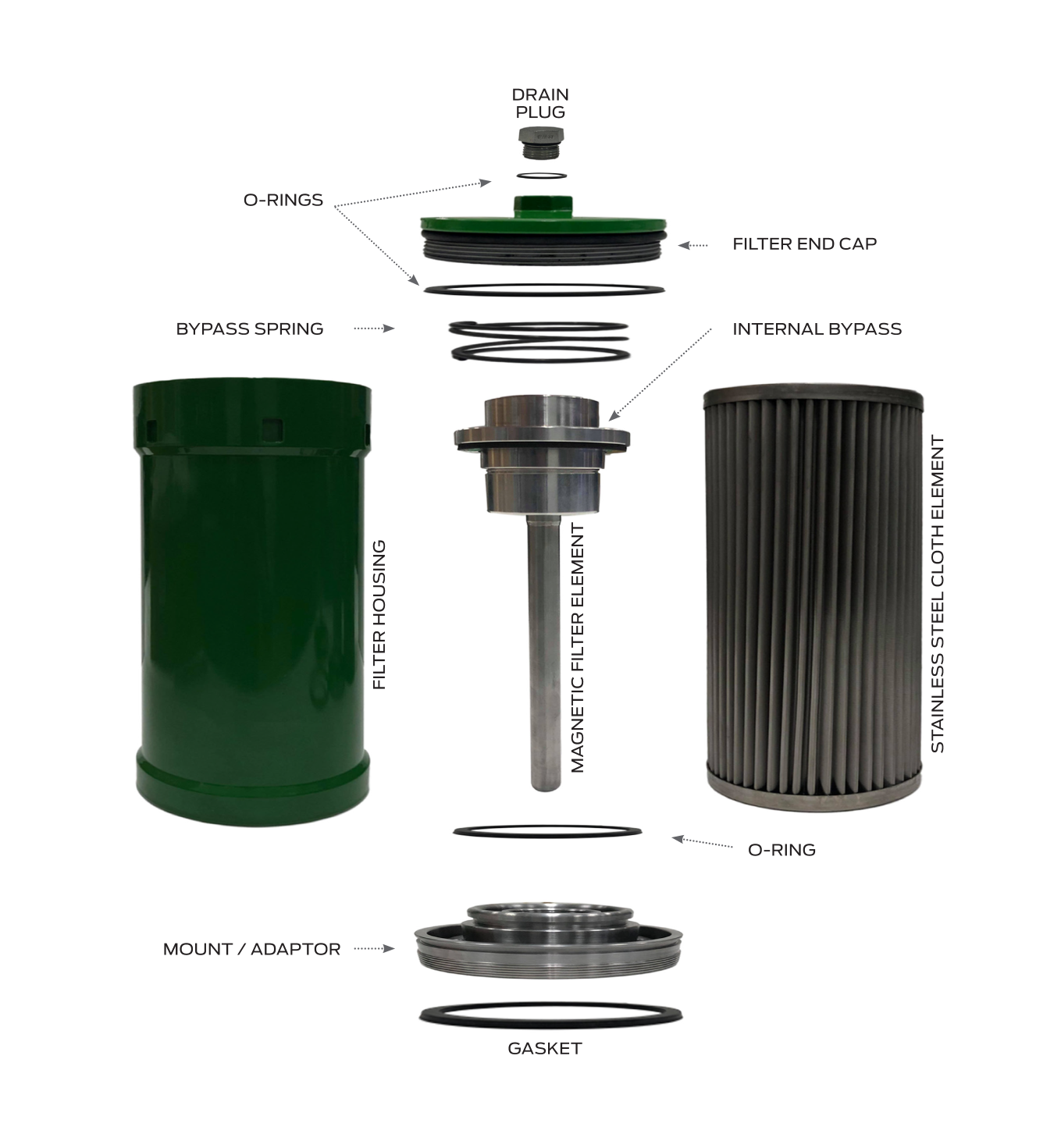

The ADD-Vantage 9000 includes OEI’s patented magnetic filter element as well as a stainless steel cloth element. Systems are optimized for fluid viscosity, flow volume, flow rate, temperature, mobility, and mounting requirements. Depending on the application, both “inside-out” and “outside-in” flow control designs are offered.
DESCRIPTION
The ADD-Vantage 9000 includes OEI’s patented magnetic filter element as well as a stainless steel cloth element. Systems are optimized for fluid viscosity, flow volume, flow rate, temperature, mobility, and mounting requirements. Depending on the application, both “inside-out” and “outside-in” flow control designs are offered.
Flow Control
“Inside-out” flow control designs are recommended because the magnetic filter element is the primary filter. Its high holding capacity allows for extended operating life of the stainless steel cloth element which minimizes bypassing and extends cleaning intervals.
“Outside-in” flow control operates with the stainless steel cloth element as the initial filter. The magnetic filter element acts as a secondary filter that enhances the systems filtration capability. If this filter goes into bypass, the magnetic filter element ensures continuous protection.
BENEFITS
» High holding capacity allows for extended planned maintenance periods
» Flows 43% more fluid or lube oil than conventional filters
» Continuous filtration in bypass
» Installs the same as conventional filters, no retrofitting required
EFFICIENCY
Magnetic Filter Element |
Ferrous Contamination |
Captures ferrous wear particles down to 4 μ and below with up to 95+% efficiency. |
Non-ferrous Contamination |
Non-ferrous particles are magnetically captured because of cross-contamination from static charge or embedded ferrous particles. |
|
Stainless Steel Cloth ElementAbsolute RatingPleated, Flat Screen, Perforated |
10 μ, 25 μ, 40 μ, 150 μ |
BETA 200Exceeds ISO 16889 Standards |
Eco-CorelessDisposable Element Nominal RatingAvailable on the Inline High-flow, High-volume |
> 10 μ |
BETA 200 |
10 μ, 25 μ |
BETA 1000 |
|
Stainless steel Perforated Element |
1/4″, 1/8″, 1/16″ |
|
Pressure/Temperature Rating |
Standard Heat |
< 34.4 bar (500 psi) @< 121.1° C (250° F) |
High Heat |
< 34.4 bar (500 psi) @< 204° C (400° F) |
|
Viscosity Rating |
< 1,000 cSt |
|
Bypass Settings |
» 0.3 bar (5 psi)» 1 bar (15 psi) |
» 3 bar (45 psi)» 4.5 bar (65 psi) |
MATERIALS
Magnetic Filter Element |
Rare-earth magnets configured in a patented radial field design |
|
Filter Housing, End Caps, Mounts |
Standard |
Carbon Steel |
Non-Corrosive |
Stainless Steel |
|
Pleated, Flat Screen, Perforated Cloth-Media Element |
Stainless Steel |
|
Eco-Coreless
|
Z-media (Synthetic) |
|
Seals |
Standard |
Buna |
High Heat |
Viton |
|
Sub-zero |
EDPM |
|
INSTALLATION
Port Size |
1/2” – 3” |
||
Port Type |
»NPT
|
» CD62
|
» CD61
|
LIMITED WARRANTY
Magnetic Filter Element |
3 years |
Housing and Components |
1 year |
Mount Type |
» Spin-on» Inline |
» Remote» In-tank |
Element Clearance |
Housing length + 4” |
|
SERVICE LIFE
Magnetic Filter Element |
18+ years |
Stainless-Steel Cloth Element |
5 years |
CLEANING
Magnetic Filter Element: Remove the contamination by wiping downward with a lab cloth or rubber glove.
Stainless Steel Cloth Element: Separate the filter element from the bypass assembly and clean with a solvent, soap and water, a parts washer, or ultrasonically. Then let the element air dry.
Use the magnetic filter element as a predictive maintenance tool by removing contamination with a lab cloth or rubber glove and depositing it into a sample jar. Send the contamination for analysis to determine the source of equipment component wear and prevent system failure.
SERIES SPECIFICATIONS
TYPE |
DESCRIPTION |
PART NUMBER |
PORT SIZE |
HOUSING SIZE |
FLOW CONTROL |
FLOW RATE@ 68 cSt |
PRESSURE RATING |
TEMP. RATING |
MAGNETIC FILTER ELEMENT |
DIRECT SPIN-ON |
ADD-Vantage 9000’s that spin directly onto OEM mounts. |
9ADV9-# |
1/2” – 1 1/2” |
3 5/8” OD x
|
Outside-in |
21 gpm
|
< 34.4 bar
|
105° C
|
1/2”OD |
9ADV9-# |
1/2” – 1 3/4” |
4 1/4” OD x 10” L |
Outside-in |
45 gpm(170 L/min) |
< 34.4 bar
|
105° C
|
1/2”OD |
||
9ADV9-# |
1/2” – 1 1/4” |
5” OD x 9 7/8” L |
Outside-in |
50 gpm(189 L/min) |
< 34.4 bar
|
105° C
|
3/4 ”OD |
||
9ADV9-# |
1/2” – 2 1/4” |
5” OD x 12 5/8 “ L |
Outside-in |
60 gpm(227 L/min) |
< 34.4 bar
|
105° C
|
3/4 ”OD |
||

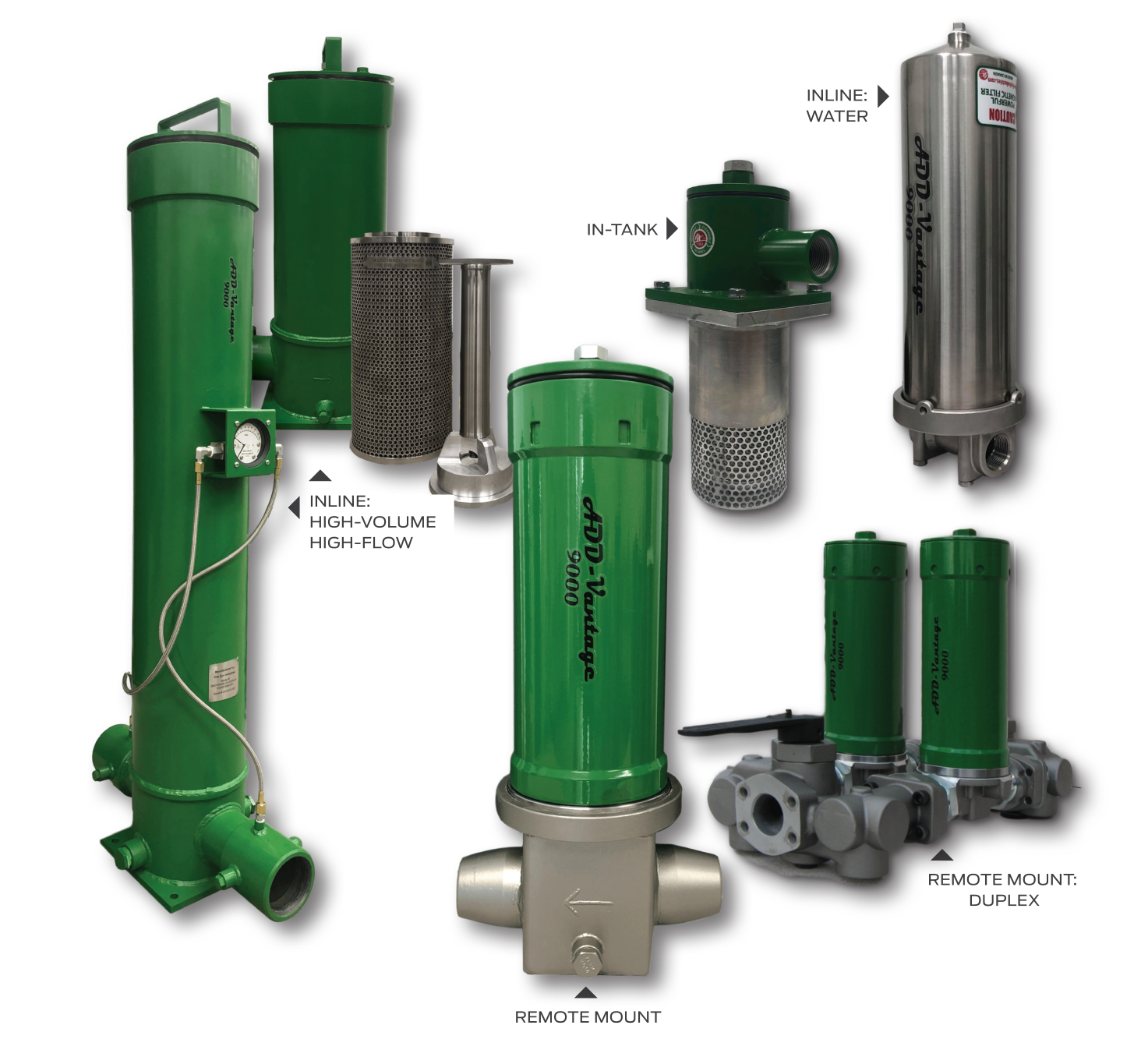

REMOTE MOUNT SPIN-ON |
Mounted ADD-Vantage to meet installation requirements of all fluid applications.ADV9-G12 is mounted and screenless for low viscosity fluids like grease.ADV9-D9L has a duplex mount for continuous filtration. |
9ADV9-388FL |
1/2” – 2” |
5” OD x 12” L |
Inside-out |
60 gpm(227 L/min) |
< 34.4 bar
|
105° C
|
3/4” OD |
9ADV9-388FF |
1/2” – 2” |
5” OD x 24” L |
Inside-out |
120 gpm(454 L/min) |
< 34.4 bar
|
105° C
|
3/4” OD |
||
9ADV9-266FL |
1/2” – 2” |
5” OD x 12” L |
Outside-in |
60 gpm(227 L/min) |
< 34.4 bar
|
105° C
|
3/4” OD |
||
9ADV9-266FF |
1/2” – 2” |
5” OD x 24” L |
Outside-in |
120 gpm(454 L/min) |
< 34.4 bar
|
105° C
|
3/4” OD |
||
9ADV9-G12 |
1/2″ – 2″ |
5” OD x 12” L |
N/A |
5 gpm(19 L/min) |
< 34.4 bar
|
105° C
|
1″ OD |
||
9ADV9-D9L |
1/2″ – 2″ |
28″ L x 13″ W x 18″ H |
Inside-out |
60 gpm(227 L/min) |
< 34.4 bar
|
105° C
|
3/4″ OD |
||
IN-TANK |
ADD-Vantage 9000’s that spin directly onto OEM mounts. |
9ADV9-MIT-306 |
1/2” – 1” |
5” OD x 11 1/2″ L |
Inside-out |
21 gpm(74 L/min) |
< 3.5 bar
|
105° C
|
3/4″ OD |
9ADV9-MIT-512 |
1/2” – 2” |
5” OD x 19” L |
Inside-out |
60 gpm(227 L/min) |
< 3.5 bar
|
105° C
|
1” OD |
||
9ADV9-MIT-520 |
1/2” – 2” |
5” OD x 27” L |
Inside-out |
120 gpm(454 L/min) |
< 3.5 bar(50 psi) |
105° C
|
1” OD |
||
9ADV9-MIT-816 |
1/2” – 3” |
8” OD x 27” L |
Inside-out |
150 gpm(568 L/min) |
< 3.5 bar(50 psi) |
105° C
|
1 1/2” OD |
||
INLINE |
ADV9-800 is designed for high-volume, high-flow applications like bulk fuel. This ADD-Vantage comes with an eco-coreless filter media option.The ADV9-VS is designed with a stainless steel housing for water applications.The ADV9-700 is designed for dispensing applications. |
9ADV9-820 |
1/2” – 3” |
8″ L x 14″ w x 30″ h |
Inside-out |
150 gpm(568 L/min) |
< 34.4 bar
|
105° C
|
1 1/2” OD |
9ADV9-838 |
1/2” – 3” |
8″ L x 17″ W x 50″ H |
Inside-out |
300 gpm(1136 L/min) |
< 34.4 bar
|
105° C
|
1 1/2” OD |
||
9ADV9-VS116 |
3/4″ |
4” OD x 15” L |
Inside-out |
5 gpm(19 L/min) |
< 5 bar
|
75° C
|
1 1/2” OD |
||
9ADV9-VS216 |
1″ |
4” OD x 15” L |
Inside-out |
5 gpm(19 L/min) |
< 5 bar
|
75° C
|
3/4” OD |
||
9-ADV9-VS220 |
3/4″ – 1″ |
4” OD x 26” L |
Inside-out |
10 gpm(38 L/min) |
< 5 bar
|
75° C
|
1″ OD |
||
9ADV9-700 |
2″ |
5” OD x 16” L |
Inside-out |
60 gpm
|
< 48 bar
|
105° C
|
3/4″ OD |
